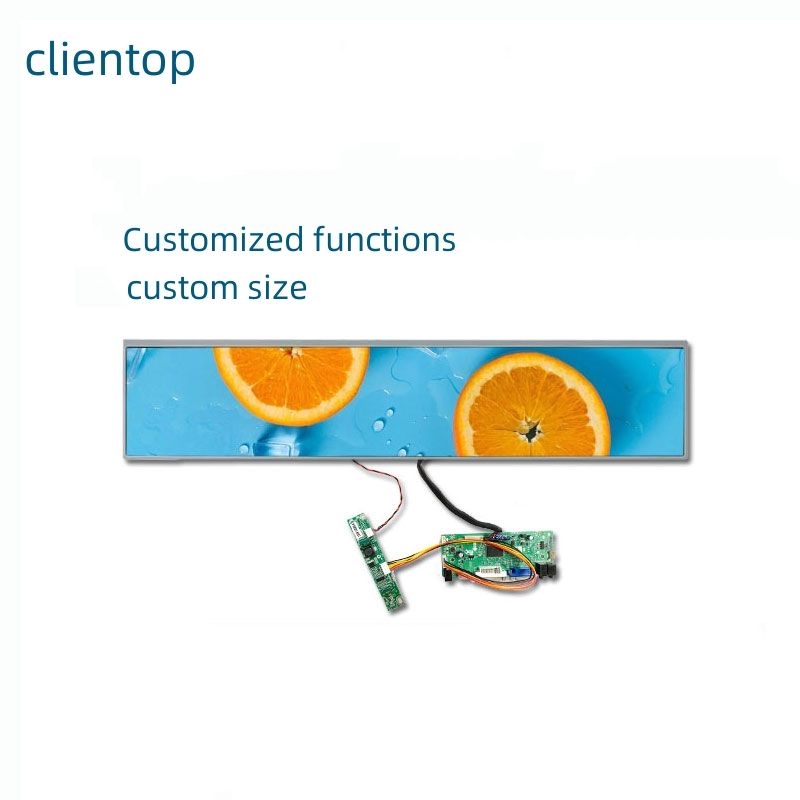

Bar Lcd Display Module Custom Size
Unlike the resized/cut stretched display from 16:9 panels, Clientop use native stretched panels from BOE, AUO, CSOT and Innolux
Key Features
- Native Stretched displays, not resizing/cut displays

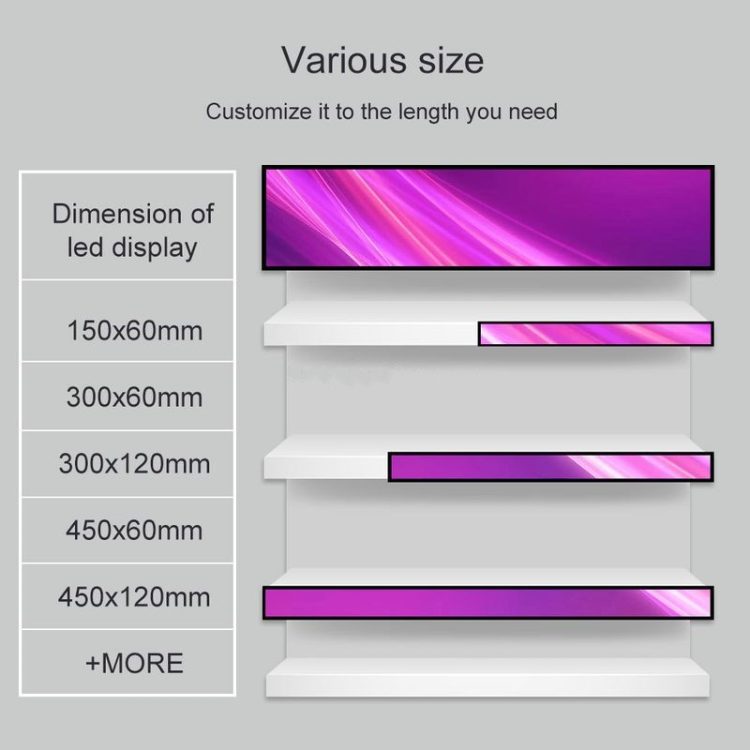

- Size: 8.8,11.9,12.3,21.3,24,28,28.6,36,45,56,58,80 inch can choose
- Special aspect ratio including 16:2.4, 16:3, 16:4, 16:4.5, 16:6 comparing to traditional digital signage
- High Brightness(Typ.): 700 cd/m² | 1000 cd/m² – 3000 cd/m² for some sizes
- Option 1: Built-in Android Player, Support 3rd party digital signage software
- Option 2: LCD Monitor with HDMI IN Only, allowing to connect to external media player
Bar Lcd Display Module Custom Size Description
Unlike the resized/cut stretched display from 16:9 panels, Clientop use native stretched panels from BOE, AUO, CSOT and Innolux and they are made using native ultra-wide LCD masks to manufacture professional grade stretched panels.Native srtetched bar LCD panels are made using native ultra-wide LCD Masks to manufacture professional grade stretched panels and are made to meet the same performance benchmark as the 16:9 LCD’s. Therefore ensuring the quality and reliability of the display after prolonged operation. As a result these stretched LCD screens will deliver clear crisp images and messages to your customers while in use.

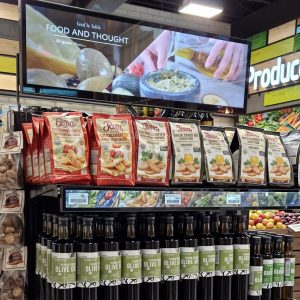

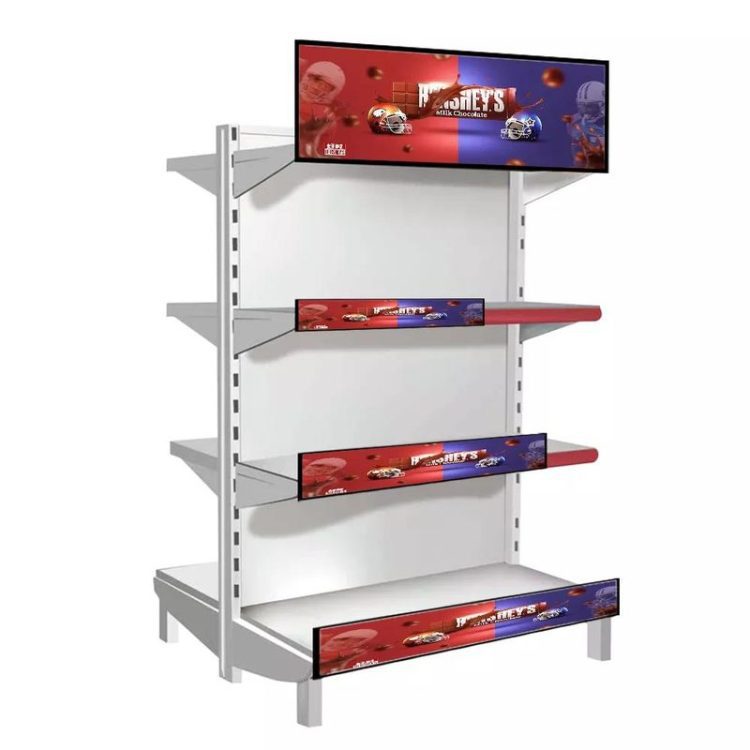

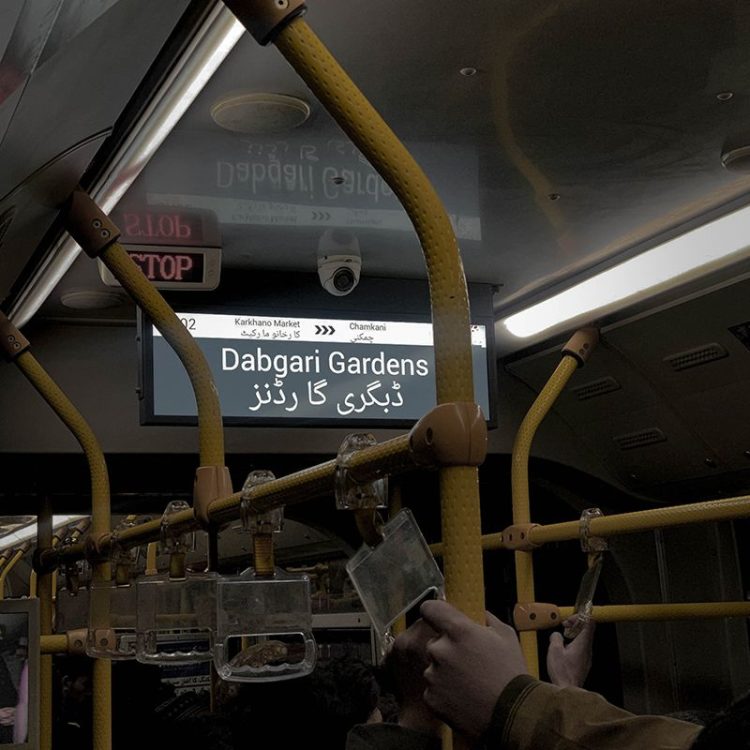

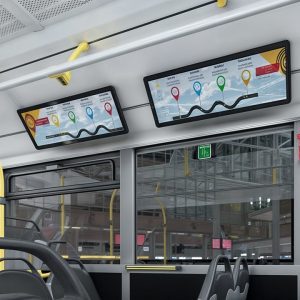

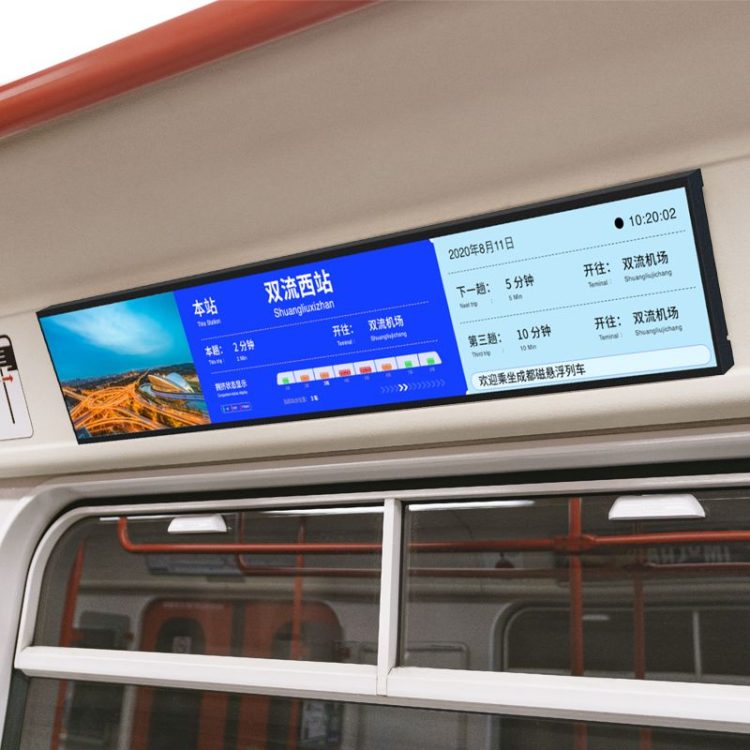

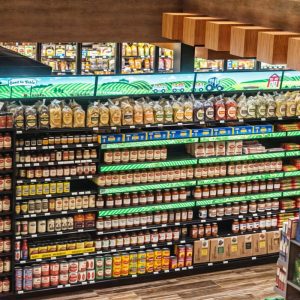

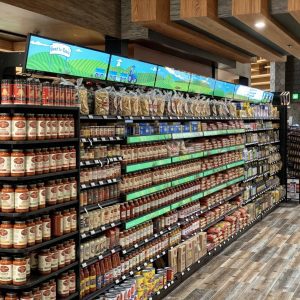

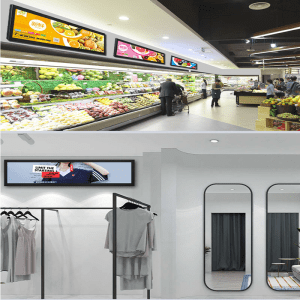

Applications
Specifications

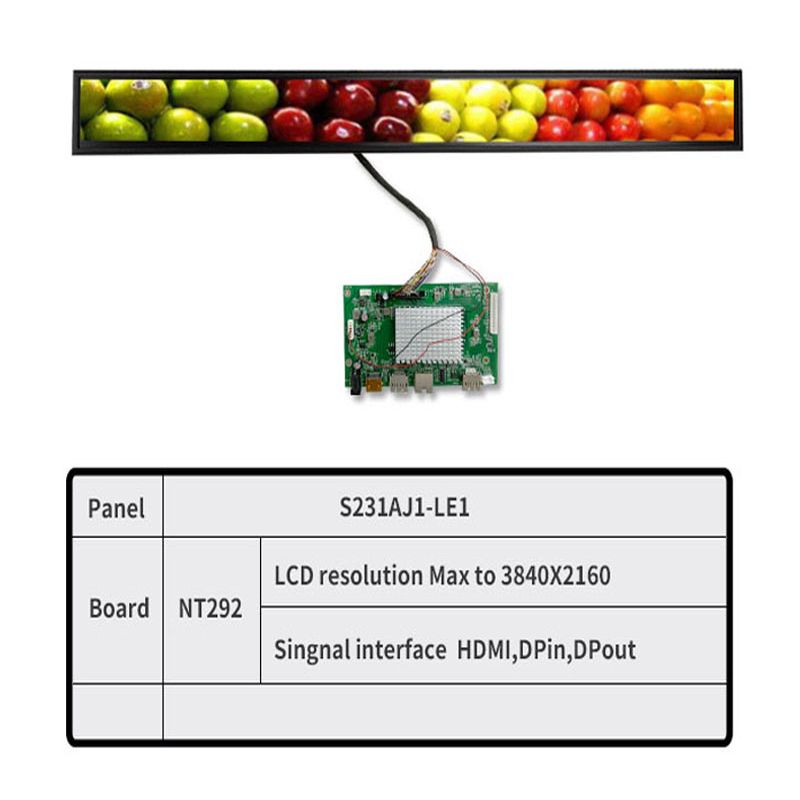

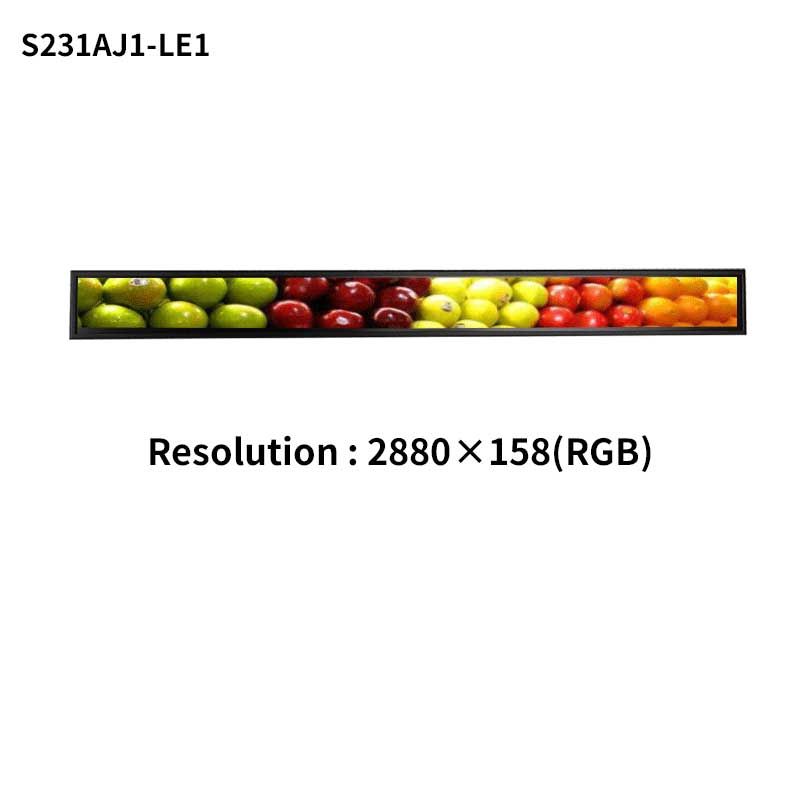

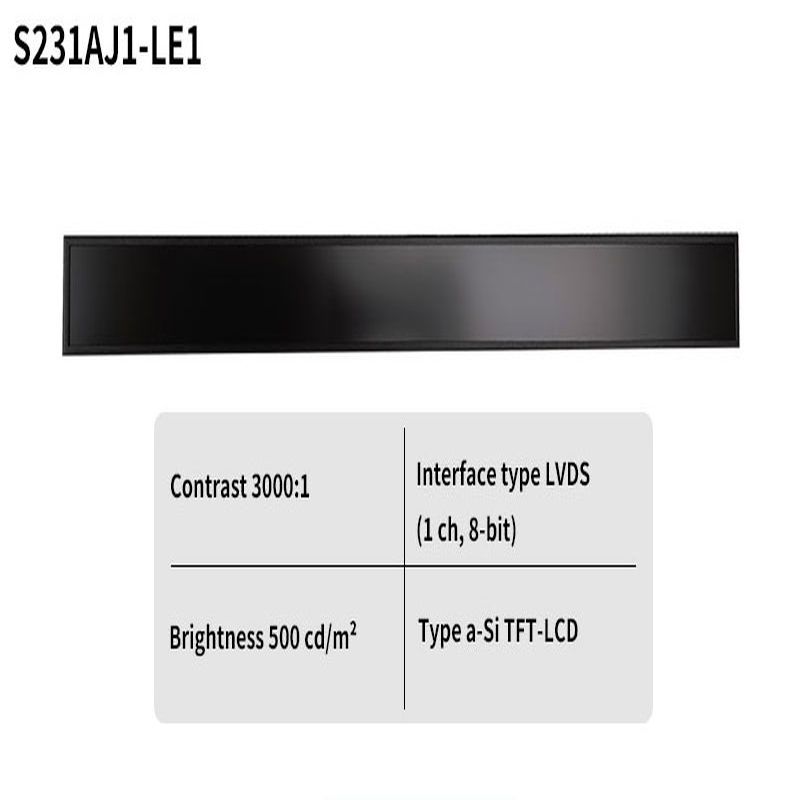

23.1 inch display
Resolution
1920 x 158
Display Area
585.6*48.19mm
Unit Size (W*H*D)
598.8*60.4*18.91mm
35 inch display
Resolution
3840*200
Display Area
877.8*45.72mm
Unit Size
891.6*60.4*27mm
47 inch display
Resolution
3840*180
Display Area
1192.3*55.89mm
Unit Size
1208.72*72.99*21.5mm
88 inch display
Resolution
3840*1080
Display Area
2148.48*598.32
Unit Size
2170.9*623.8*101.2
LCD Panel
Resolution
custom
Surface Treatment
25% Haze, Anti-glare
Brightness
500-3000 nits
Contrast Ratio
1000:1
Power
Power Input
AC 100-240V – DC 12V
Power Consumption
40W | 60W | 80W & custom
