23.1 Inch Bar Lcd Display For Shelf
Native stretched bar LCD Panels, also known as bar displays, are made from BOE, Innolux and AUO in a variety of sizes, configurations, and brightness options.
Key Features
- Native Stretched displays, not resizing/cut displays
- Size: 8.8,11.9,12.3,21.3,24,28,28.6,36,45,56,58,80 inch can choose
- Special aspect ratio including 16:2.4, 16:3, 16:4, 16:4.5, 16:6 comparing to traditional digital signage
- High Brightness(Typ.): 700 cd/m² | 1000 cd/m² – 3000 cd/m² for some sizes
- Option 1: Built-in Android Player, Support 3rd party digital signage software
- Option 2: LCD Monitor with HDMI IN Only, allowing to connect to external media player
23.1 Inch Bar Lcd Display For Shelf Description

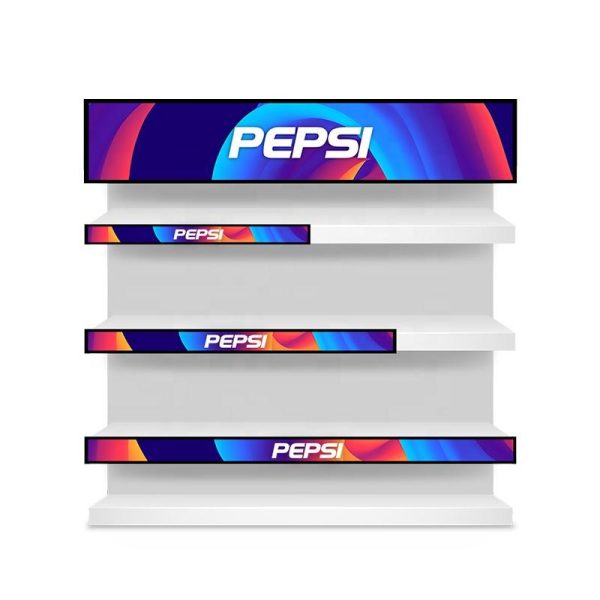

Clientop shelf-edge LCD Display is about the special application on shelf edge for smart retail solution. Considering the retail shelf environment, we can provide both shelf header LCD Displays and shelf-edge LCD Displays, which are specially designed for the shelf restricted space digital signage applications. Digital shelf edge displays are using native stretched lcd panels, which are custom built with ultra-wide aspect ratio of 20:1 or >3:1. Native stretched LCD Panels, also known as bar displays, are made from BOE, Innolux and AUO in a variety of sizes, configurations, and brightness options. Native Stretched LCD Panels have no problems like broken glass, fragile sealing, micro-cracks, light leakage that cut bar displays encountered.
Applications
Specifications
23.1 inch display
Resolution
1920 x 158
Display Area
585.6*48.19mm
Unit Size (W*H*D)
598.8*60.4*18.91mm
35 inch display
Resolution
3840*200
Display Area
877.8*45.72mm
Unit Size
891.6*60.4*27mm
47 inch display
Resolution
3840*180
Display Area
1192.3*55.89mm
Unit Size
1208.72*72.99*21.5mm
88 inch display
Resolution
3840*1080
Display Area
2148.48*598.32
Unit Size
2170.9*623.8*101.2
LCD Panel
Resolution
custom
Surface Treatment
25% Haze, Anti-glare
Brightness
500-3000 nits
Contrast Ratio
1000:1
Power
Power Input
AC 100-240V – DC 12V
Power Consumption
40W | 60W | 80W & custom
